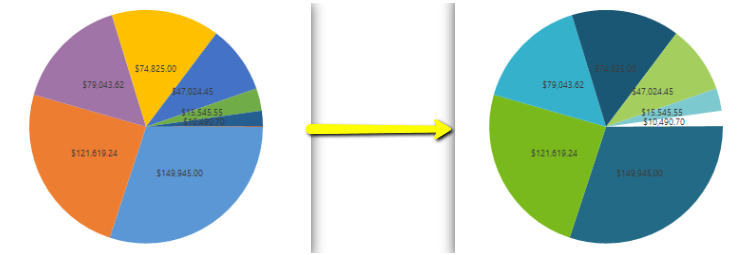

Our start and end result

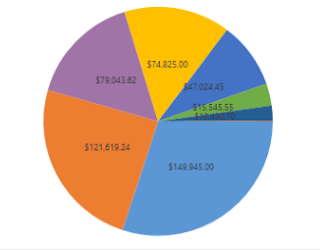

This is the chart for which i need to change the color palette

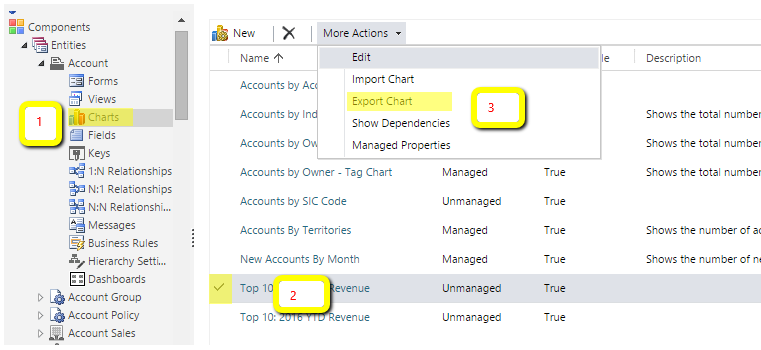

Exports the chart

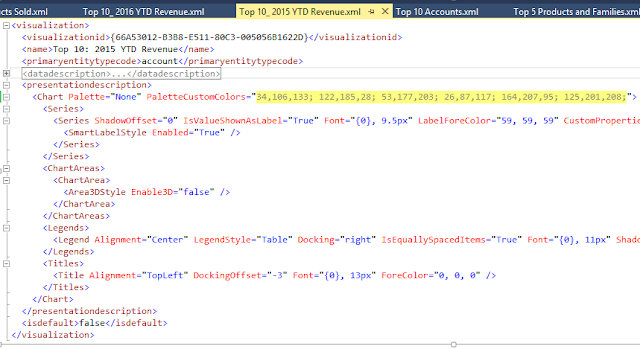

After exporting open the chart XML file in Visual studio or Note pad and replace your own color palette in the below highlighted area and save the chart xml file.

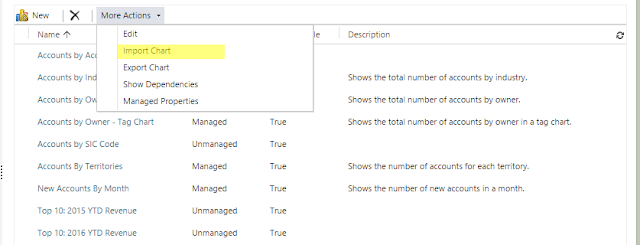

In CRM solution click on the Import chart button as shown below:

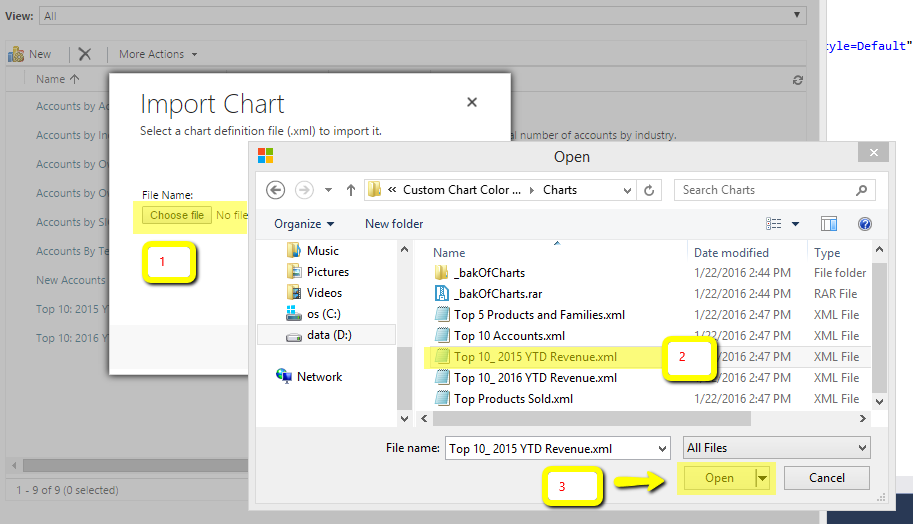

Browse and select your updated chart XML file:

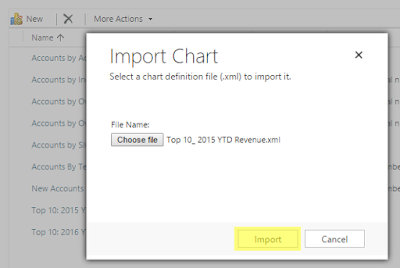

Click Import button

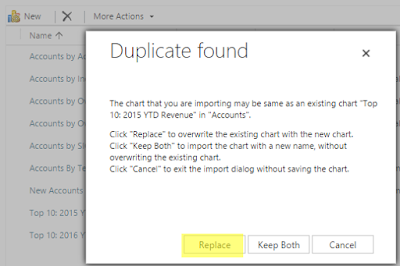

Click Replace button to update the existing chart

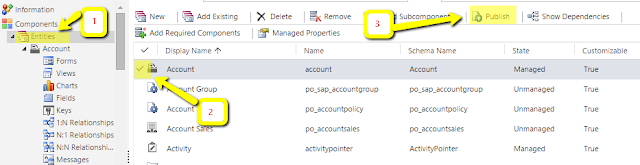

Published the entity that contains the chart

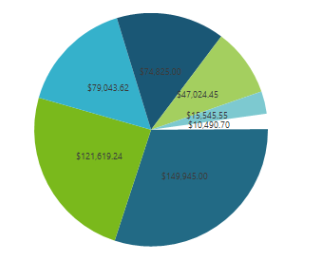

Refresh your chart in dashboard OR in the entity main grid page
